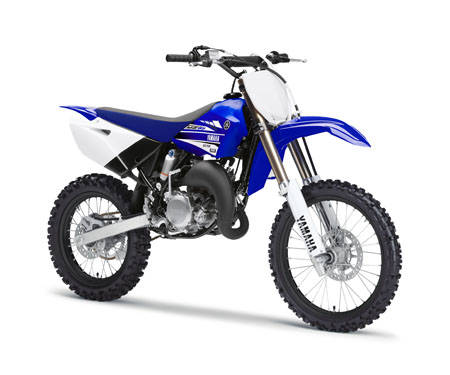

YZ85LW

yamaha-yz85lw
Yamaha YZ85LW for Sale at MOTOGO Yamaha in Melbourne, VIC | Specifications and Review Information

Yamaha YZ85LW for Sale at MOTOGO Yamaha in Melbourne, VIC | Specifications and Review Information

For 2022, the YZ85LW (Large Wheel) model takes the race-winning YZ85 formula and enhances off-road capability even more with the addition of a larger 19-inch front wheel and 16-inch rear wheel wrapped in high performance Dunlop MX3S tyres.

Along with its proven liquid-cooled YPVS-equipped 85cc powerplant, fully adjustable suspension and large diameter brakes, the new 2022 YZ85 boasts numerous enhancements to expand its overall performance.

Rider ergonomics have been improved by way of a new, narrower tank design, flatter seat, new side covers and slimmer, symmetrical radiator shrouds. This enables greater freedom of movement for smooth shifting of body weight and better machine control.

For demanding junior racers, the new YZ85LW has been enhanced in several key chassis areas to optimise strength and rigidity, including revisions to the main frame, longer swingarm and rear wheel axle. The aluminium swingarm was redesigned to enhance balance between longitudinal and torsional rigidity for improved handling stability. A new removable rear subframe constructed from lightweight, high-strength aluminium reduces weight. The rear brake master cylinder now has a built-in sub-reservoir providing more linear brake response and increased control.

Availability from early 2022.

New rear brake system

New rear brake system

For powerful and controllable braking the YZ85 features self-cleaning wave type discs – with a 220mm front and 190mm rear. And for more linear rear braking and improved feel there’s a new rear master cylinder with a built-in sub-reservoir.

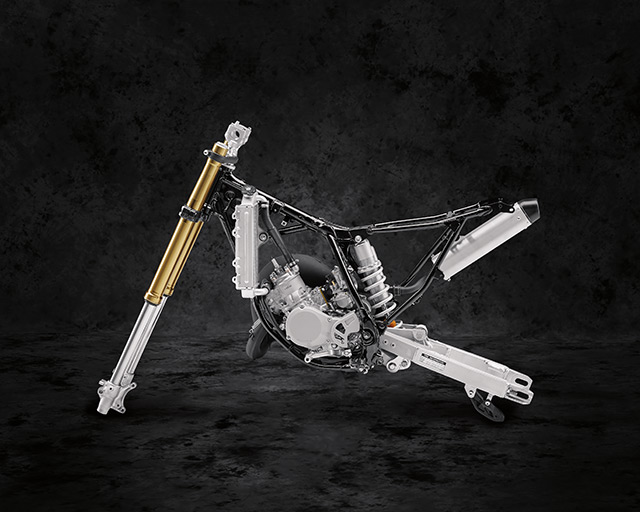

Lightweight aluminium rear frame

Lightweight aluminium rear frame

An all-new detachable aluminium rear frame replaces the previous model’s steel unit and reduces weight by 570g, contributing towards the bike’s mass centralisation.

Fully adjustable front forks

Fully adjustable front forks

Featuring specially machined one-piece tapered outer tubes to align them well with the rigidity balance of the frame, and equipped with 36mm inner tubes, the inverted front forks provide optimised damping settings. Combined with the fully adjustable low friction cartridge forks, the YZ85 has the most sophisticated front fork design ever used on a youth YZ motocross bike.

YPVS 2-STROKE ENGINE

YPVS 2-STROKE ENGINE

The 85cc liquid cooled engine features the Yamaha Power Valve System (YPVS) that boosts overall performance and contributes towards the bike’s easy to use torque. Running with a high compression ratio – and equipped with a close ratio 6-speed transmission – the YZ85 delivers outstanding acceleration with race winning power.

Improved air intake

Improved air intake

The air intake system has been redesigned and features new side panels with large rear facing vents for a straighter airflow into the engine’s airbox, which, increases the intake efficiency for improved engine performance.

Improved rider ergonomics

Improved rider ergonomics

A flatter seat and redesigned fuel tank provide improved ergonomics for easy front/rear weight shifting. The new seat design accommodates a new single bolt seat fixing, making routine maintenance easier and quicker.

Technical Specifications



Engine



Engine Type Liquid-cooled, 2-stroke with YPVS
Displacement (cc) 85.0
Bore x Stroke (mm) 47.5 x 47.8
Compression Ratio 8.1-9.6 : 1
Lubrication System Premix
Fuel Management PWK28
Ignition CDI
Starter System Kick
Fuel Tank Capacity (L) 5.0
Final Transmission Chain
Transmission Constant mesh 6-speed



Chassis



Frame Type Semi double cradle
Suspension Front Telescopic forks, 275mm travel
Suspension Rear Swingarm (link suspension), 287mm travel
Brakes Front Hydraulic single disc, 220mm
Brakes Rear Hydraulic single disc, 190mm
Tyres Front 70/100-19 42M
Tyres Rear 90/100-16 52M



Dimensions



Length (mm) 1895
Width (mm) 760
Height (mm) 1175
Seat Height (mm) 885
Wheelbase (mm) 1285
Ground Clearance (mm) 360
Wet Weight (kg) 75
